Hybrid实验

时间：2020-06-16 14:26:39 收藏：0 阅读：64

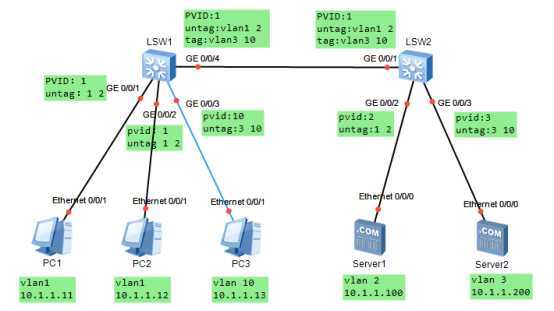

技术分享图片

1、 pc机配置ip地址

2、创建vlan

S1：

<Huawei>sy

[Huawei]sysname S1

[S1]vlan batch 2 3 10

S2:

<Huawei>sy

[Huawei]sysname S2

[S2]vlan batch 2 3 10

3、配置hybrid

S1：

[S1]int g0/0/1

[S1-GigabitEthernet0/0/1]port link-type hybrid

[S1-GigabitEthernet0/0/1]port hybrid pvid vlan 1

[S1-GigabitEthernet0/0/1]port hybrid untagged vlan 1 to 2

[S1-GigabitEthernet0/0/1]int g0/0/2

[S1-GigabitEthernet0/0/2]port link-type hybrid

[S1-GigabitEthernet0/0/2]port hybrid pvid vlan 1

[S1-GigabitEthernet0/0/2]port hybrid untagged vlan 1 to 2

[S1-GigabitEthernet0/0/2]int g0/0/3

[S1-GigabitEthernet0/0/3]port link-type hybrid

[S1-GigabitEthernet0/0/3]port hybrid pvid vlan 10

[S1-GigabitEthernet0/0/3]port hybrid untagged vlan 3 10

[S1-GigabitEthernet0/0/3]int g0/0/4

[S1-GigabitEthernet0/0/4]port link-type hybrid

[S1-GigabitEthernet0/0/4]port hybrid pvid vlan 1

[S1-GigabitEthernet0/0/4]port hybrid untagged vlan 1 to 2

[S1-GigabitEthernet0/0/4]port hybrid tagged vlan 3 10

[S1-GigabitEthernet0/0/4]quit

S2：

[S2]int g0/0/1

[S2-GigabitEthernet0/0/1]port link-type hybrid

[S2-GigabitEthernet0/0/1]port hybrid pvid vlan 1

[S2-GigabitEthernet0/0/1]port hybrid untagged vlan 1 to 2

[S2-GigabitEthernet0/0/1]port hybrid tagged vlan 3 10

[S2-GigabitEthernet0/0/1]int g0/0/2

[S2-GigabitEthernet0/0/2]port link-type hybrid

[S2-GigabitEthernet0/0/2]port hybrid pvid vlan 2

[S2-GigabitEthernet0/0/2]port hybrid untagged vlan 1 to 2

[S2-GigabitEthernet0/0/2]int g0/0/3

[S2-GigabitEthernet0/0/3]port link-type hybrid

[S2-GigabitEthernet0/0/3]port hybrid pvid vlan 3

[S2-GigabitEthernet0/0/3]port hybrid untagged vlan 3 10

[S2-GigabitEthernet0/0/3]quit
