cxf2.7.10 与 spring3.0.5集成

时间：2014-03-31 12:27:02 收藏：0 阅读：397

开发环境：

NetBeans7.4

Tomcat 6.0.32

一服务端：

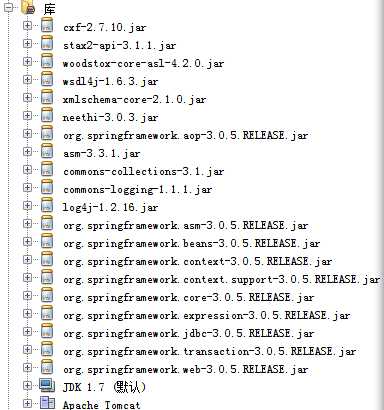

1：新建JavaWeb工程 cxfspring-server，导入jar包如下图所示：

bubuko.com,布布扣

2：在web.xml文件中添加如下配置项：

<context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:spring-config.xml</param-value>
    </context-param>
    <!--监听spring-->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

<!--监听CXFServlet-->
    <servlet>
        <servlet-name>CXFServlet</servlet-name>
        <servlet-class>org.apache.cxf.transport.servlet.CXFServlet</servlet-class>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>CXFServlet</servlet-name>
        <url-pattern>/ws/*</url-pattern>
    </servlet-mapping>

3：新建一个com.test.server包，里面创建接口；新建一个com.test.server.impl包，里面实现接口，结构如下：

bubuko.com,布布扣

（1）：IArithmeticServer.java

@WebService
public interface IArithmeticServer {
    /**
     * 两个整数相加
     * @param opr1
     * @param opr2
     * @return
     */
    public int addition(int opr1,int opr2);

    /**
     * 两个整数相减
     * @param opr1
     * @param opr2
     * @return
     */
    public int subtraction(int opr1, int opr2);
}

（2）：ArithmeticServerImp.java

targetNamespace = "http://server.test.com/"一定要配置否则的话看这里：

http://www.cnblogs.com/yshyee/p/3633537.html

@WebService(
    endpointInterface = "com.test.server.IArithmeticServer",
    targetNamespace = "http://server.test.com/")
public class ArithmeticServerImp implements IArithmeticServer{

    public int addition(int opr1, int opr2) {
        return opr1+opr2;
    }

    public int subtraction(int opr1, int opr2) {
        return opr1-opr2;
    }

}

（3）：spring-config.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans
    xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:jaxws="http://cxf.apache.org/jaxws"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-3.0.xsd
        http://cxf.apache.org/jaxws
        http://cxf.apache.org/schemas/jaxws.xsd">

    <import resource="classpath:META-INF/cxf/cxf.xml" />
    <import resource="classpath:META-INF/cxf/cxf-servlet.xml" />

    <!--一个endpoint对应于一个服务-->
    <jaxws:endpoint
        id="arithmeticServer"
        implementor="com.test.server.impl.ArithmeticServerImp"
        address="/ArithmeticServer"/>


</beans>

二客户端：

1：新建JavaWeb工程，cxf-spring-client，导入的jar包与服务端相同。

2：新建一个测试类：通过动态方式调用CXF WebService。

public class Test {
    public static void main(String args[]) throws Exception{
        fun1();
    }

    public static void fun1() throws Exception{
        JaxWsDynamicClientFactory clientFactory  = JaxWsDynamicClientFactory.newInstance();
        Client client = clientFactory.createClient("http://localhost:8080/cxfspring-server/ws/ArithmeticServer?wsdl");

        Object[] result = client.invoke("addition", 1,2);
        System.out.println("1+2:"+result[0]);

        result = client.invoke("subtraction", 1,2);
        System.out.println("1-2:"+result[0]);
    }
}

3：运行结果：

信息: Created classes: com.test.server.Addition, com.test.server.AdditionResponse, com.test.server.ObjectFactory, com.test.server.Subtraction, com.test.server.SubtractionResponse
1+2:3
1-2:-1
成功构建 (总时间: 3 秒)
